MCB's

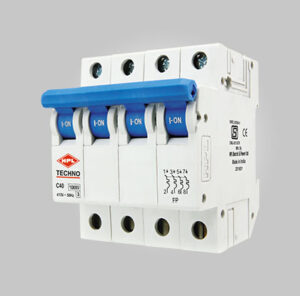

Techno MCB
- Range : 0.5 to 63 Amps 240/415V, AC
- Available in SP, SPN, DP, TP, TPN & FP
- Breaking capacity 10kA
- Available in B, C & D Curve

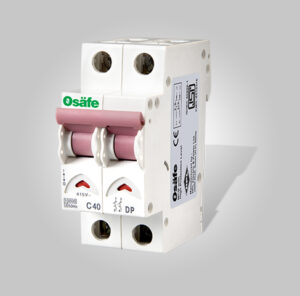

Osafe MCB
- Range : 0.5Amp – 63Amp in SP, SPN, DP, TP, TPN, FP
- Specification : IS/IEC-60898-1
- Rated Voltage : 240/415V AC, 50Hz
- Rated Breaking capacity 10kA & Energy Limit Class 3

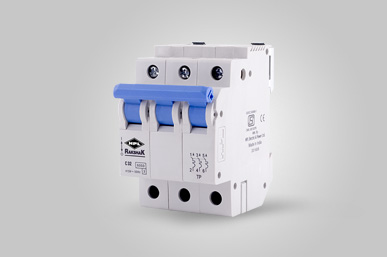

Rakshak MCB
- Range: 6 to 63A.
- Available in SP, SPN, DP, TP, TPN & FP.
- ISI marked & conforms to IS:60898-1.
- Protection against Short Circuit & Over Load.
- Finger Touch proof (IP20).
- Available B & C curve.
- Breaking Capacity : 6kA.
- Voltage Rating : 240/415V.
- Low watts loss hence energy saving.
- Low let through energy.

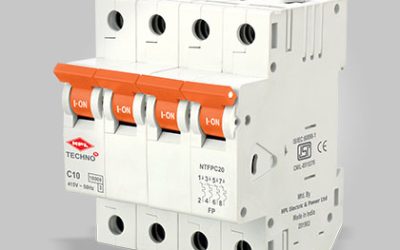

Techno N MCB
- State-Of-The-Art design
- Conforms to Is:60898 -1.
- Rated short circuit breaking capacity 10 kA.
- Current Limiting Design.
- Trip-free Mechanism.
- Cable termination up to 35 mm2.
- IP 20 Protection on live parts.
- Better arc quenching & cooling systems which ensure enhanced short circuit performance.
- Energy Efficiency:Low watt loss in comparison to IS specification.
